PZ40 Series Meter Box

PZ40 series meter box can be widely used in all kinds of modern buildings, residential and other users of electricity metering. There are three types of meter boxes: concealed, exposed and outdoor. The panels are embedded with iron structure and plastic core, and the switch handle is exposed for easy operation. Frame and box can be installed separately, easy to dismantle and install. Concealed dumpling chain, box body plating treatment. The observation window of electricity meter is made of high-strength plastic, it is easier to observe the electricity consumption directly.

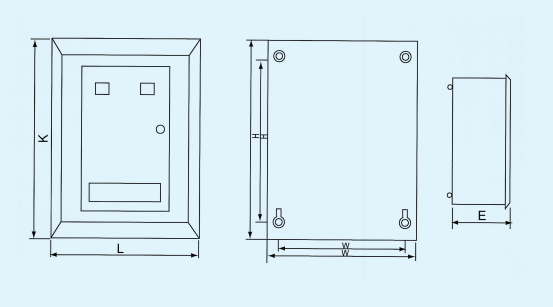

Overall Dimension(mm)

This product adopts the international IEC standard and national standard design and manufacture, and the components in the box are selected from foreign electrical products or domestic production of more advanced electrical components. Distribution box is suitable for industrial and mining enterprises, commercial, service industry, and civil buildings AC 50Hz, voltage 600V below three-phase three-wire, three-phase four-wire power distribution series for power or lighting distribution.

This box is an outdoor device. There is a waterproof cover on the top of the box, and there is a gap between the top cover and the box, which is convenient for heat and water dissipation. The box is divided into inner door and outer door, the outer door is surrounded by waterproof tape and waterproof groove, and the inner door can be installed with instruments, lights, buttons and changeover switches, etc. The box is divided into floor and hanging type, and there are cable access holes at the bottom of the box.
The box is divided into two types: floor and hanging type, and the bottom of the box is opened with cable inlet and outlet holes.

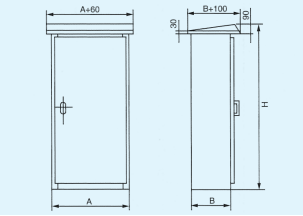

Housing size(mm)

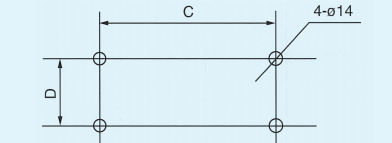

Installation example
