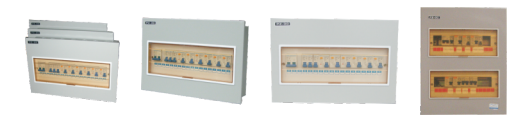

The PZ30 termination journal is a device for installing termination appliances, the internal components of which are fully assembled on C-rails with a width of 9 mm {18 mm) modulo.
The internal components are all 9mm {18mm) modulus electrical appliances assembled on the C-type track. The shell adopts new material, new shape, novel structure, reliable electrical performance, high sectional capacity, good current limiting characteristics, which is suitable for the latest requirements of the majority of users.
Main technical parameters
| Total circuits | A | B | C | D | H |
| 4 | 165 | 175 | 135 | 155 | 80 |
| 6 | 230 | 200 | 205 | 175 | 90 |
| 10 | 300 | 300 | 275 | 275 | 90 |
| 12 | 300 | 335 | 275 | 310 | 90 |
| 15 | 300 | 390 | 275 | 365 | 90 |
| 18 | 300 | 445 | 275 | 420 | 90 |
| 20 | 500 | 300 | 475 | 275 | 90 |
| 24 | 500 | 335 | 475 | 310 | 90 |
| 30 | 500 | 390 | 475 | 365 | 90 |
| 36 | 500 | 445 | 475 | 420 | 90 |
| 45 | 390 | 630 | 365 | 605 | 90 |
